Mega TV Wall Mount
32"-70"
Flat Screen
features
．VESA standard compatible with common sizes of 200x200mm, 200x400mm, 300x300mm, and 400x400mm, and 400x600mm
．Compatible with 32-70 inch TV (monitors), Maximum load : 110lbs (50kgs)
．The double-arm cantilever wall mount allows 120ﾟswivel (left/right) and 15ﾟtilting.
．The dual-arm allow the wall mount to extend from 100-510mm away from the wall.
．Rigid, compatible, and easy-to-install. Suitable for home or commercial use.
spec
TV Szie Range：32"-70"
Max Load：110 lbs.(50kg)
Max VESA：600mmx400mm
Tilt Angle：±15°
Swivel Angle：±60°(120°)
Distance to Wall：100mm-510mm
Wall stud configuration: min 8.8" - max. 10.6” wide
Arm Length：50cm
Dimensions：644mm * 500mm * 390mm
Weight：5.5kg
Specifications

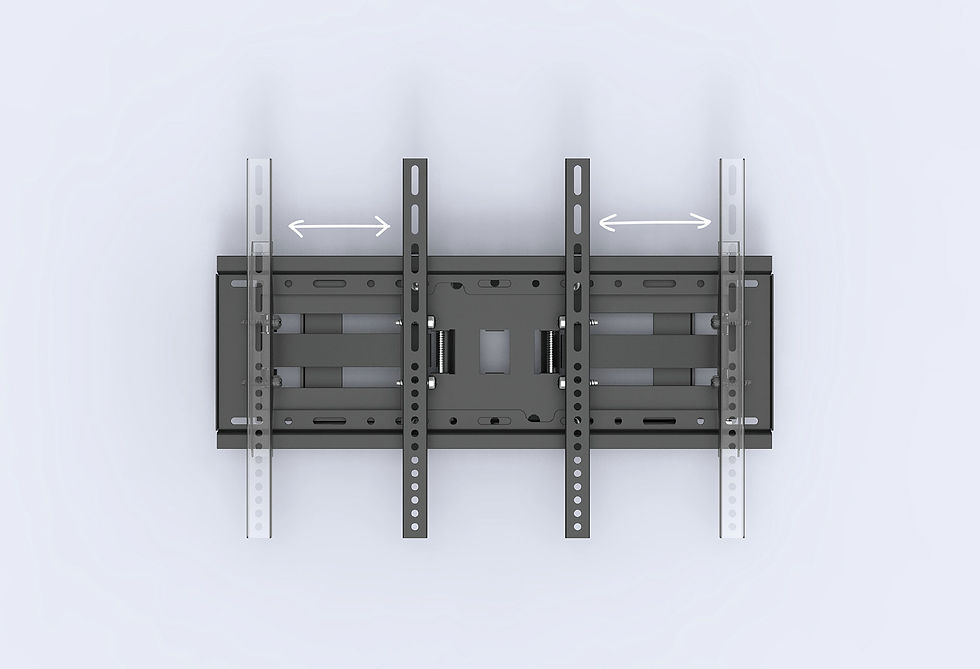

Stepless Adjustable Wall Mount bracket allows you to attach them to TV according to your TV mounting holes with Max VESA up to 600mm x 400mm (With VESA pattern: 100mmx100mm / 200mmx100mm / 200mmx200mm / 400mmx200mm / 400mmx400mm / 600mmx400mm)
Made of fine SPCC for reliable strength and using anti-corrosive paint on the metallic surface. Providing a space saving measure and reduce the potental crisis of product break.
